Climate Anti-Yellowing & Anti-Aging Testing Machine, Rubber Yellowing Test Chamber

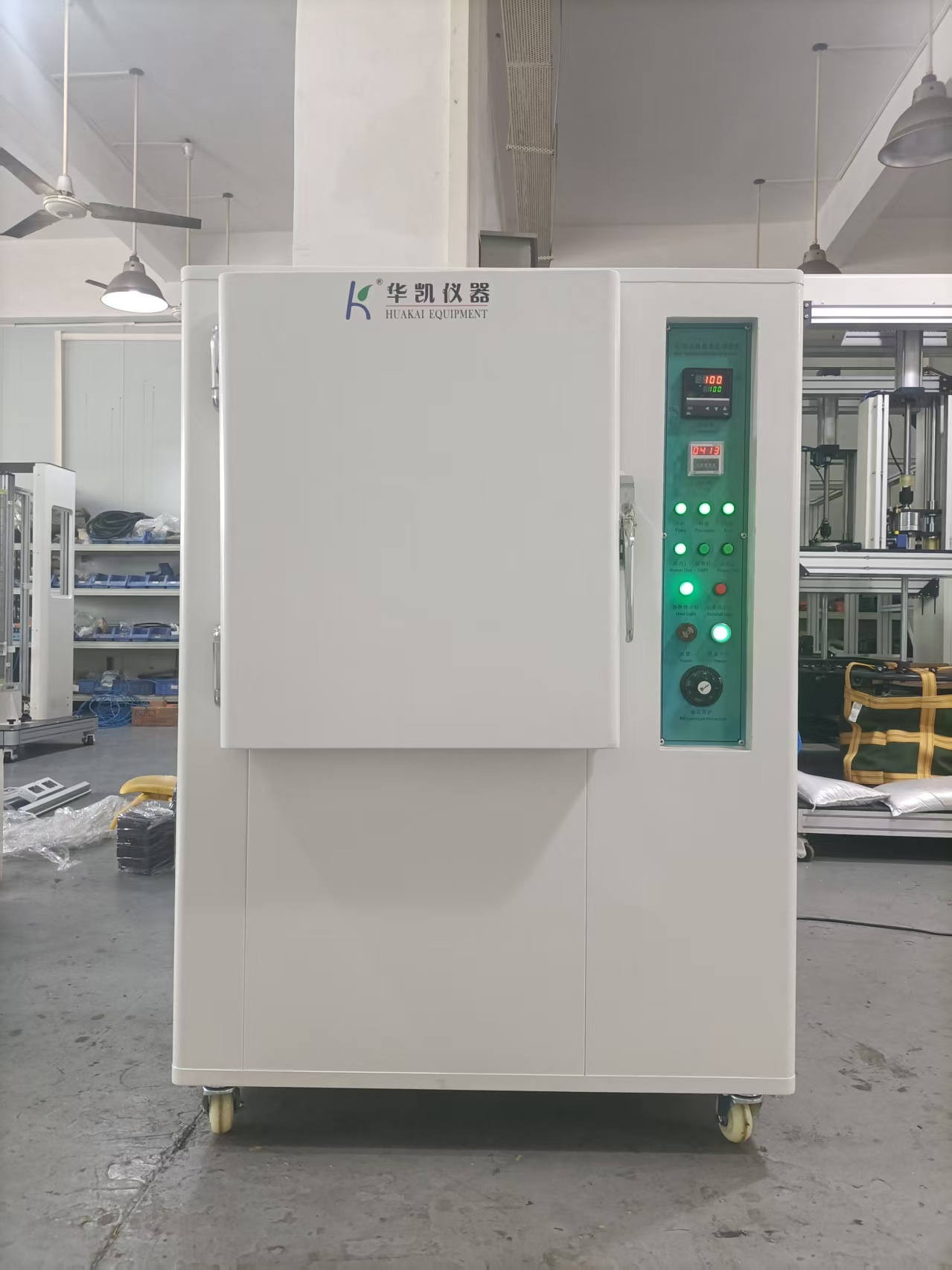

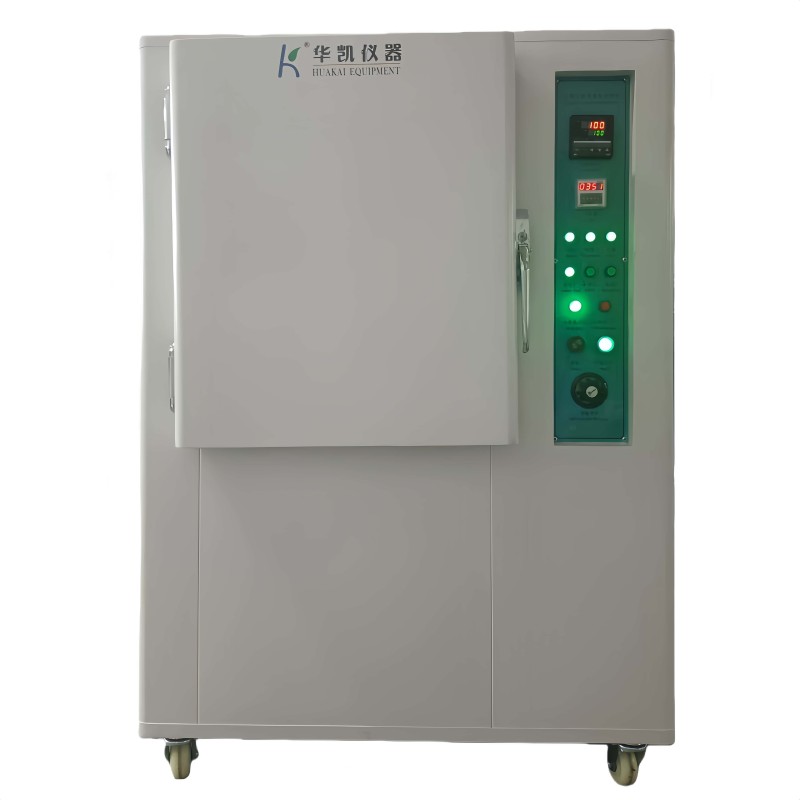

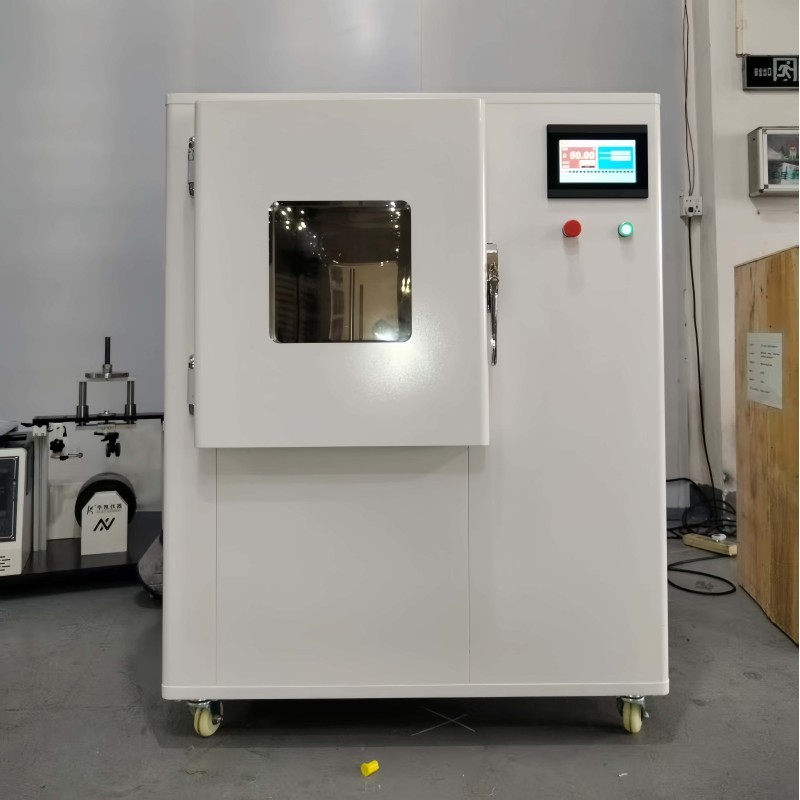

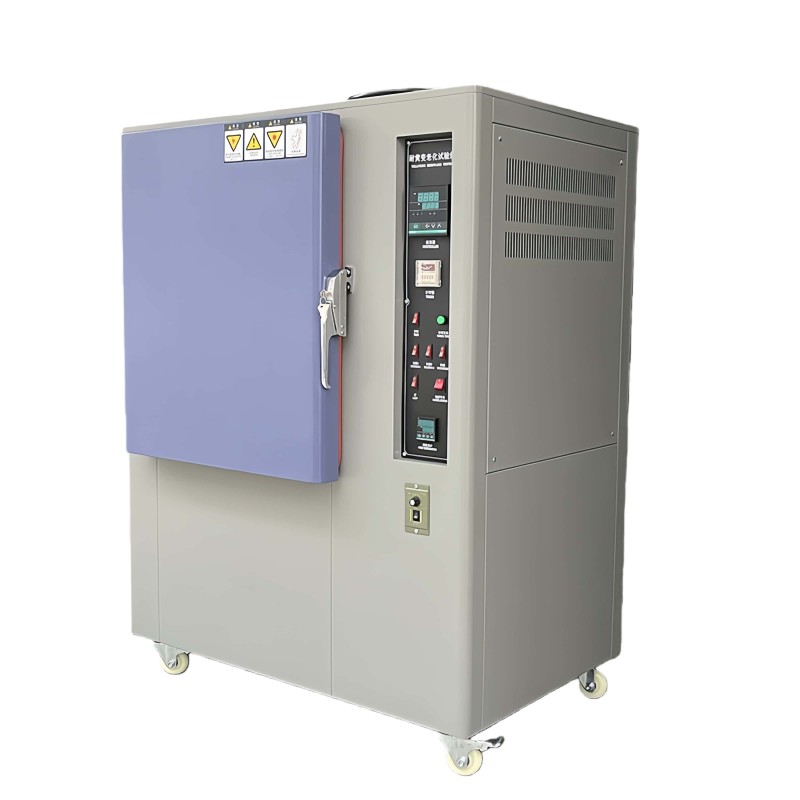

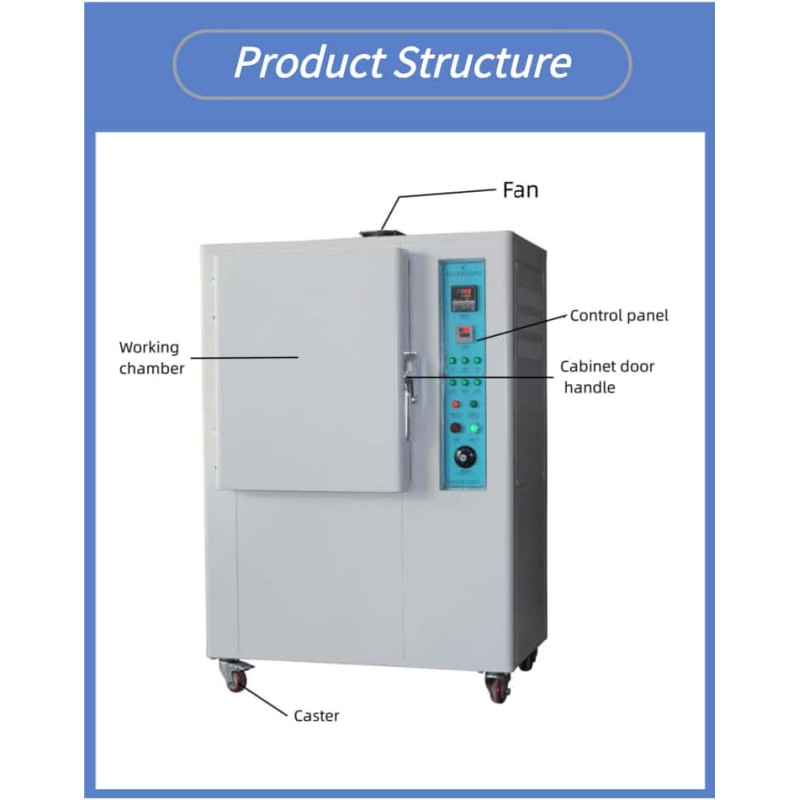

The HK-109 Yellowing and Aging Test Chamber is designed to accelerate the deterioration of vulcanized rubber and plastics, enabling the calculation of tensile strength and elongation change before and after heating. Equipped with a forced hot air circulation system, it ensures uniform temperature distribution for reliable test results.

* Dual Function: Supports both accelerated aging and yellowing resistance testing.

* Aging Test: Simulates long-term atmospheric exposure at elevated temperatures (e.g., 70°C for one day ~ 6 months outdoor exposure).

* Yellowing Test: Simulates UV sunlight exposure effects (e.g., 50°C for 9 hours ~ 6 months outdoor exposure).

* Precision Control: Automatic calculation controller with high accuracy and stability.

* Durable Build: SUS#304 stainless steel inner chamber and powder-coated exterior.

* Safety Features: Over-temperature cut-off, overload protection, and current display.

Complies with ASTM, JIS, BS, ISO, IEC, UL, ASTM-D1148, HG/T3689 standards.

Rubber, plastics, coatings, adhesives, and other polymer materials requiring accelerated aging or yellowing resistance evaluation.

Dongguan Huakai Testing Equipment Technology Co., Ltd. is a professional integrated testing equipment company specializing in independent R&D, innovative design, and independent production. We provide reliability test equipment, environmental test equipment, and various testing instruments. Our testing equipment not only meets the requirements of international quality standards such as EN, DIN, BS, UL, ASTM, JIS, GB, and ISO, but also has obtained certifications from professional institutions including CMC and CPA.
